Products

Selma provides proactive noise and vibration control solutions to meet customer needs,
based on extensive technical expertise accumulated over many years in the field.
Vibration Reduction Products

SCD

‌Stiffness Control Device
Product Application
  • Ensures dynamic stability of equipment when installed with a pneumatic mount system
  • Reduces tack time for production inspection equipment that generates dynamic loads
  • Equipment and sites requiring ultra-precision micro-vibration control, such as in semiconductor and display industries
  • Equipment requiring displacement control due to dynamic loads during operation
Product Features
  • Device for dynamic stiffness reinforcement of structures vulnerable to vibrations
  • Quantitatively changes the load applied to the structure to alter its dynamic characteristics
  • Capable of dynamic reinforcement control in multiple axes, including vertical and horizontal directions
  • Optimizes reinforcement points through pressure tuning

Product Specifications

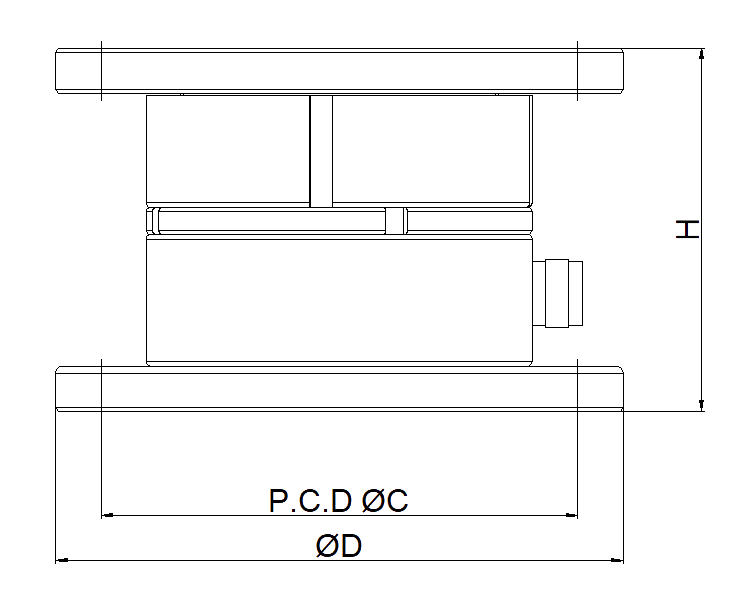

Model External Dimensions ØD (mm) Mounting Dimensions ØC (mm) Product Height H (mm) Product Capacity (kg/EA) Product Weight (kg)
SCD-3.0
Ø250
Ø210
170
30,000
35
Custom manufacturing is available according to customer specifications beyond standard specifications, and specifications are subject to change due to performance improvements.

Product Performance Graph

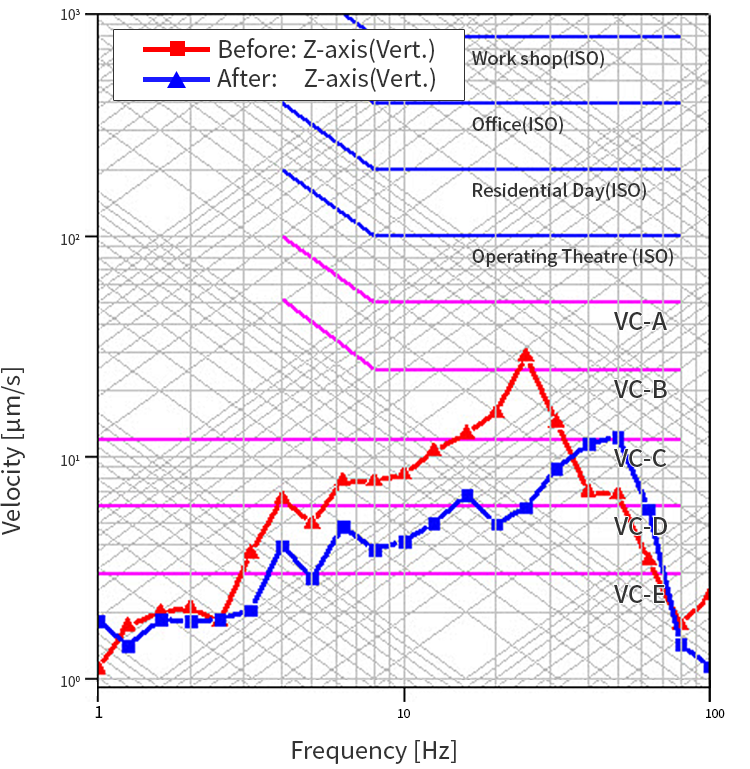

Vibration Levels Before and After SCD Installation [Real-life Case Study]

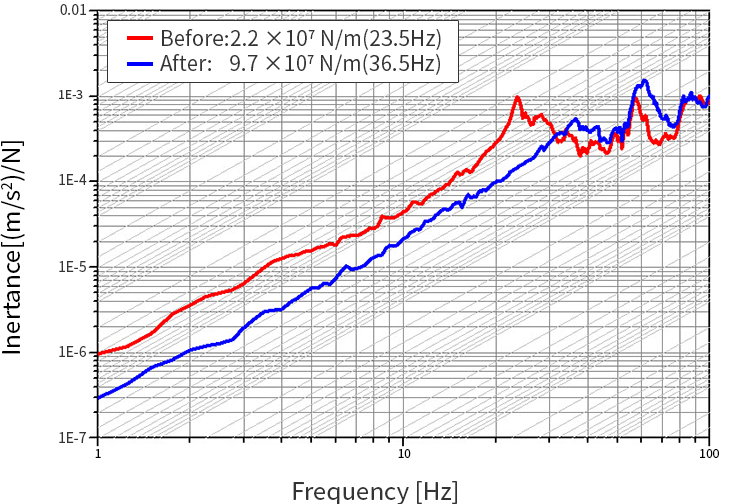

Dynamic Stiffness Increased by Approximately 4 Times After SCD Installation [Real-life Case Study]
