Vibration Reduction Products

ARM

‌Advanced Rubber Mount
Product Application
  • Measurement and inspection equipment used in processes such as semiconductors and displays
  • Equipment and sites requiring ultra-precision micro-vibration control, such as in semiconductors and displays
  • Equipment and structures where impact vibration occurs
Product Features
  • Achieves a natural frequency of 6 Hz or lower
  • Capacity can be modified with various product combinations
  • Achieves performance in both vertical and horizontal directions
  • Excessive response can be controlled with auxiliary damper combinations
  • Stable and flexible field application with high-efficiency vibration isolation effects
Product Performance
  • Vibration Isolation Method: Anti-Vibration Rubber
  • Natural Frequency: 6 Hz
  • Adjustable Damping Ratio: 5 ~ 10%

Product Specifications

Model External Dimensions L×W×H (mm) Product Capacity (kg/EA) Product Weight (kg)
ARM-300
240×135×85
300
6
ARM-600
240×240×85
600
12
ARM-900
345×240×85
900
18
ARM-1200
455×240×85
1200
24
Custom manufacturing is available according to customer specifications beyond standard specifications, and specifications are subject to change due to performance improvements.

Product Performance Graph

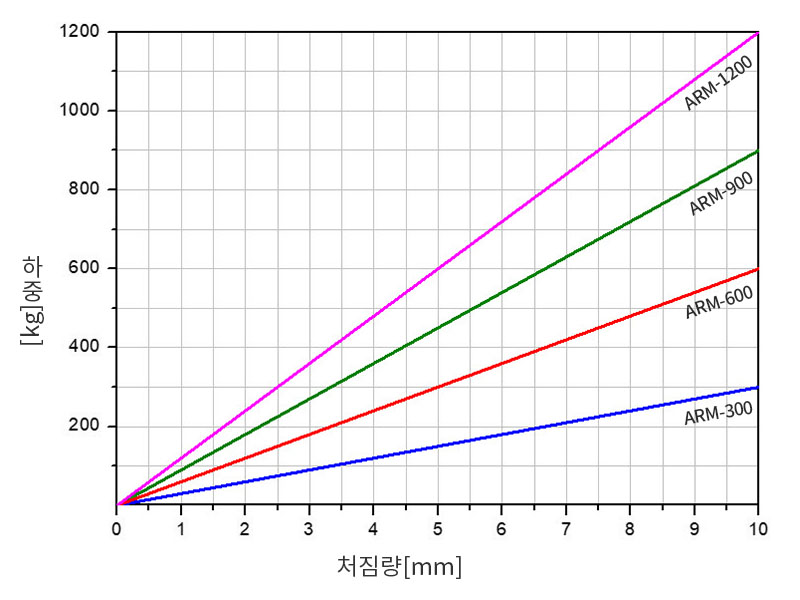

Load Curve

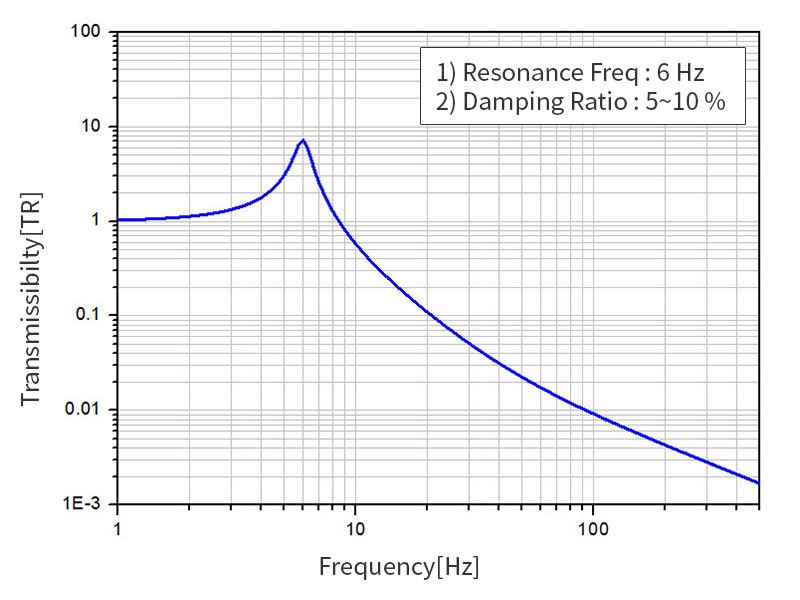

Vibration Transmission Rate
