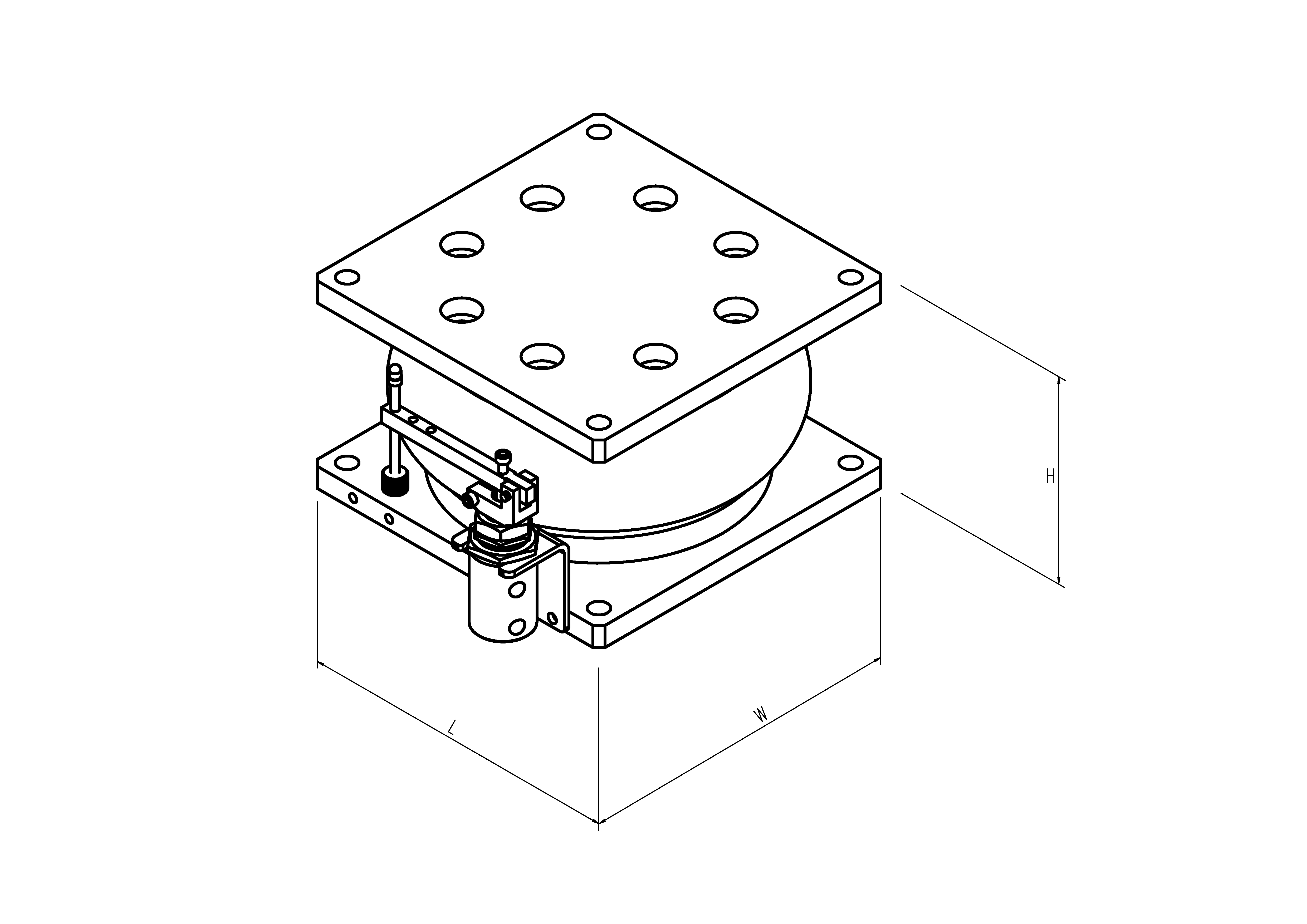

| Model | External Dimensions L×W×H (mm) | Mounting Distance D (mm) | Assembly Section ØC | Product Capacity (kg/EA) | Product Weight (kg) | |
|---|---|---|---|---|---|---|
|
BAM-0.5 (D)
|
220×220×150
|
□-195×195
|
Ø10
|
500
|
17
|
|
|
BAM-1.0 (D)
|
240×240×150
|
□-210×210
|
Ø14
|
1,000
|
19
|
|
|
BAM-1.5 (D)
|
280×280×150
|
□-270×270
|
Ø14
|
1,500
|
26
|
|
|
BAM-2.0 (D)
|
320×320×150
|
□-290×290
|
Ø18
|
2,000
|
33
|
|
|
BAM-2.5 (D)
|
360×360×170
|
□-330×330
|
Ø18
|
2,500
|
41
|
|
|
BAM-3.0 (D)
|
380×380×170
|
□-350×350
|
Ø18
|
3,000
|
43
|
|
|
Accessories
|
Regulator - 1 piece, Air Tube Ø6 - 5m, Tube Fitting (T) - 3 pieces
|
|||||
Applying the H.S.S (High Speed Supply System) can enhance equipment stabilization speed.
For models with an integrated damper, add "(D)" at the end of the model number.
