Products

Selma provides proactive noise and vibration control solutions to meet customer needs,
based on extensive technical expertise accumulated over many years in the field.
Vibration Reduction Products

URM

Utility's Rubber Mount
Product Application
  • When vibration reduction solutions are needed for rotating equipment such as pumps, blowers, and HVAC units
  • Reduction of periodic and impact vibrations in various piping and utilities
Product Features
  • Achieves a natural frequency of 7Hz or lower
  • Capacity can be modified with various product combinations
  • Height adjustable with leveling bolts
  • Excellent durability against oil, chemicals, and physical impacts
Product Performance
  • Vibration Isolation Method: Anti-Vibration Rubber
  • Natural Frequency: 7Hz
  • Adjustable Damping Ratio: 5 ~ 10%

Product Specifications

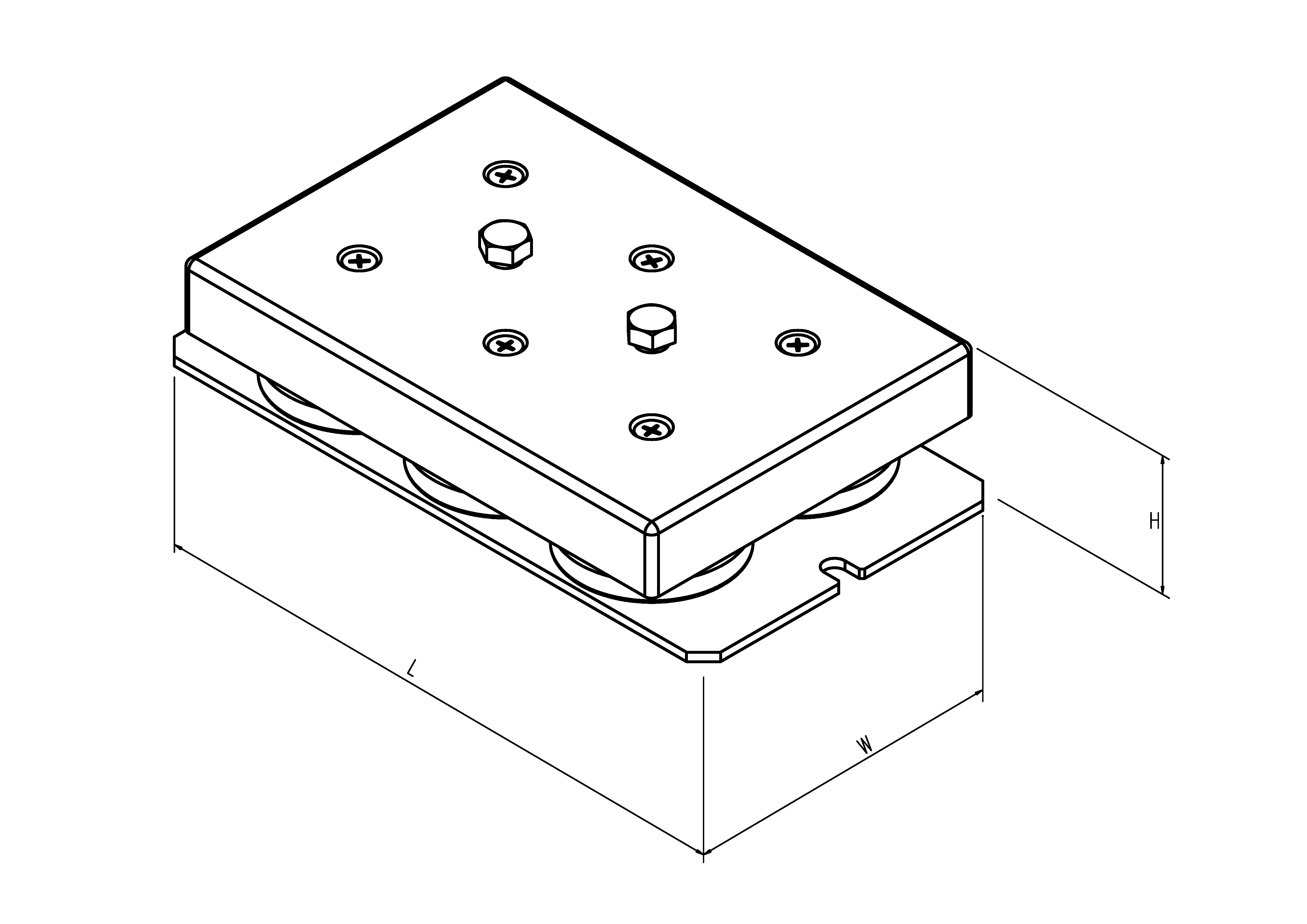

Model External Dimensions L×W×H (mm) Mounting Distance D (mm) Product Capacity (kg/EA) Product Weight (kg)
URM-150
160×110×80
140
150
3
URM-300
292×110×80
270
300
5
URM-600
292×217×80
270
600
10
URM-900
401×217×80
375
900
14
Custom manufacturing is available according to customer specifications beyond standard specifications, and specifications are subject to change due to performance improvements.

Product Performance Graph

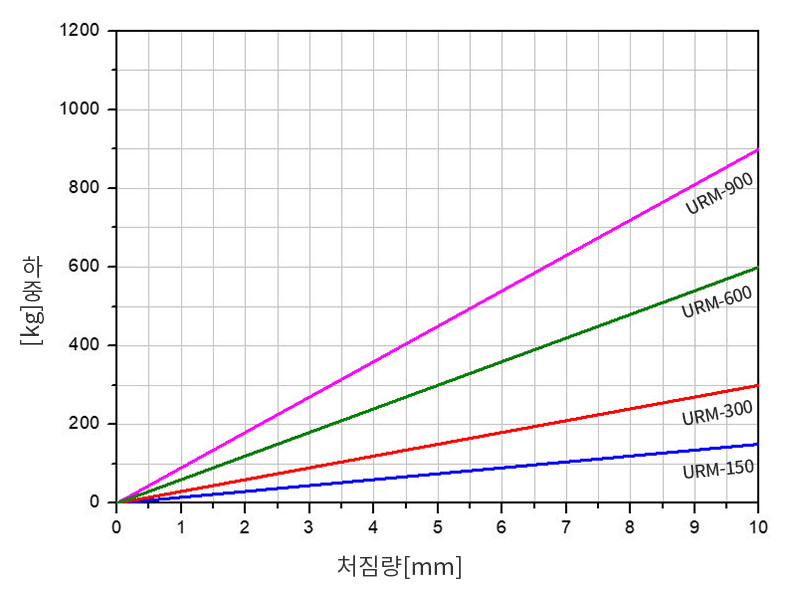

Load Curve

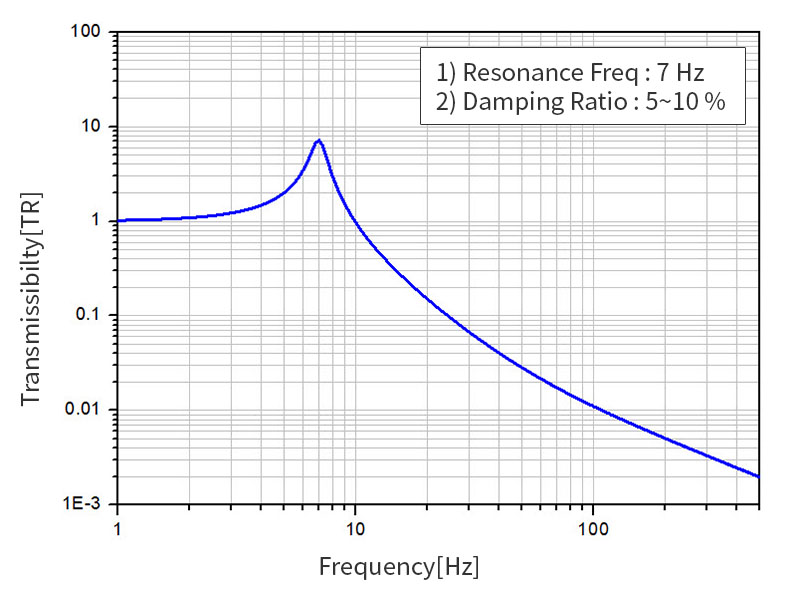

Vibration Transmission Rate
