Selma provides proactive noise and vibration control solutions to meet customer needs,
based on extensive technical expertise accumulated over many years in the field.
Vibration Reduction Products

GAM

Gimbal-type Air Mount
Product Application
  • Equipment requiring high efficiency and low-frequency vibration isolation performance
  • Sites or equipment requiring nanometer-level, VC-D grade implementation
  • Equipment and sites requiring ultra-precision micro-vibration control, such as in semiconductor and display industries
  • Various inspection equipment, laser-related devices, 3D measuring instruments, and other precision measurement equipment
Product Features
  • Provides top-level vibration isolation performance in both vertical and horizontal directions in Korea
  • Reduces vibration effectively and shortens stabilization time through a dual-chamber system
  • Connects the air chamber and damping chamber with a variable orifice
  • Uses a high-precision leveler that ensures high repeat accuracy
  • Optional built-in oil damper available
Product Performance
  • Vibration Isolation Method: Air Spring
  • Natural Frequency: 1.5 ~ 2 Hz
  • Displacement Repeat Accuracy: ±0.05 mm ~ ±0.10 mm
  • Variable Damping Ratio: 5 ~ 15% (adjustable settling time available as an option)
  • Vibration Reduction Performance in 10 Hz Range: 90 ~ 99%

Product Specifications

Model External Dimensions L×W×H (mm) Mounting Distance D (mm) Assembly Section ØC Product Capacity (kg/EA) Product Weight (kg)
GAM-0.5
210×210×185
□-195×195
Ø10
500
14
GAM-1.0
280×280×185
□-250×250
Ø14
1,000
28
GAM-1.5
320×320×185
□-290×290
Ø14
1,500
43
GAM-2.0
350×350×185
□-320×320
Ø18
2,000
52
GAM-3.0
430×430×185
□-400×400
Ø18
3,000
85
Accessories
Regulator - 1 piece, Air Tube Ø6 - 5m, Tube Fitting (T) - 3 pieces
Custom manufacturing is available according to customer specifications beyond standard specifications, and specifications are subject to change due to performance improvements.
Applying the H.S.S (High Speed Supply System) can improve equipment stabilization speed.

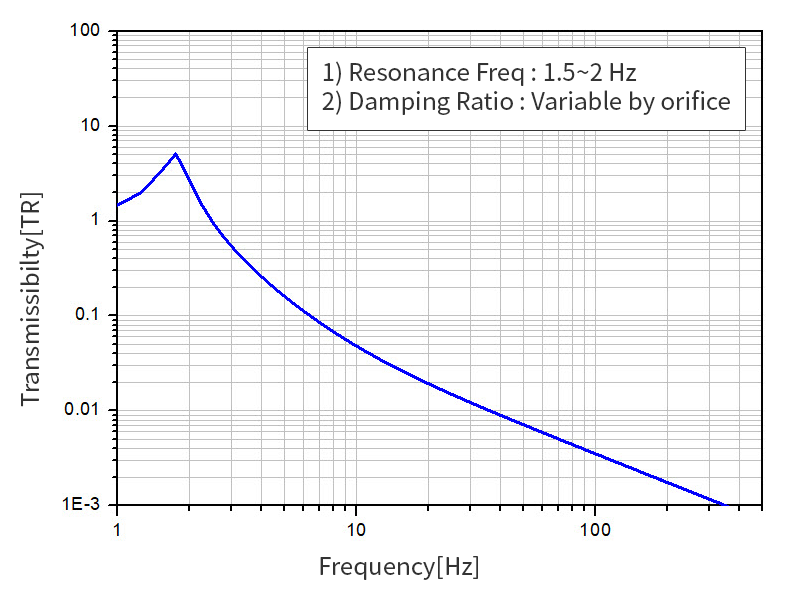

Product Performance Graph

Vibration Transmission Rate
