Selma provides proactive noise and vibration control solutions to meet customer needs,
based on extensive technical expertise accumulated over many years in the field.
Vibration Reduction Products

VAD

‌Variable-type Absorption Damper
Product Application
  • Ensures dynamic stability of equipment when installed with a pneumatic mount system
  • Reduces tack time for production inspection equipment that generates dynamic loads
  • Equipment and sites requiring ultra-precision micro-vibration control, such as in semiconductor and display industries
  • Equipment requiring displacement control due to dynamic loads during operation
Product Features
  • Suppresses displacement caused by shock vibrations when combined with a pneumatic mount
  • Enables control of maximum displacement of the pneumatic mount with a locking feature
  • Minimizes fluctuation in the natural frequency of the pneumatic mount due to damping force
  • Easy installation and maintenance with adjustable damping force
  • Ensures damping performance even at small displacements, addressing the drawbacks of conventional dampers

Product Specifications

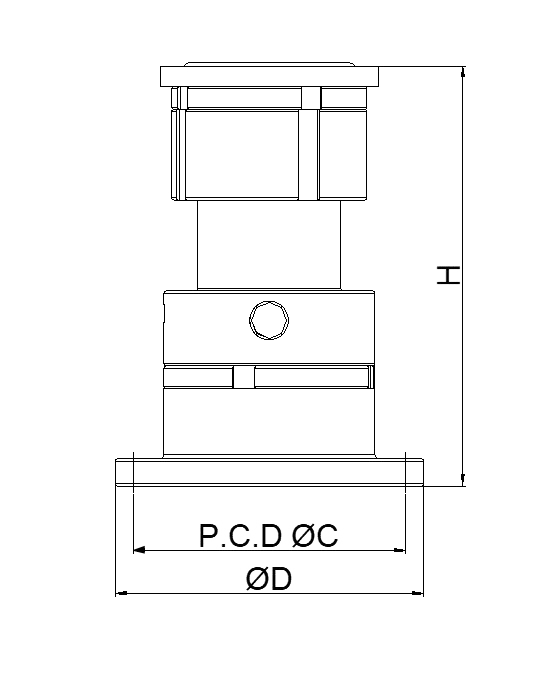

Model Bottom Diameter ØD (mm) Mounting Distance ØC (mm) Product Height H (mm) – (Standard/Downward/Upward Height) Product Weight (kg)
VAD
136
120
180 – 170/155/200
8
Custom manufacturing is available according to customer specifications beyond standard specifications, and specifications are subject to change due to performance improvements.

Product Performance Graph

Impact Vibration Dissipation Force
